Fuses and Thermostats

Limit Temperature:275®F Terminal Size: 1/4"

The thermostat cycles the heating element on and off to make sure the temperature in the dryer stays even. It can also cut power to the heating element in the event the gets too hot. This is an exact replacement for the Samsung part with the same number...

10K Ohms @ 77° F

Thermostat for a Whirlpool dryer.

Open: 196°F / 88°C single blow fuse Fits LG® & Kenmore® dryers Can handle loads up to 25 amps at 240VAC 1/4" terminals // -1) { li[i].style.display = ""; } else { li[i].style.display...

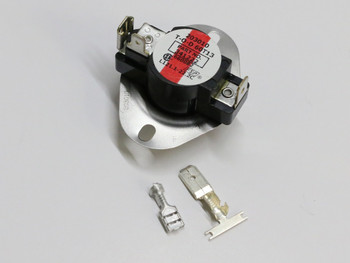

High limit thermostat. Includes one high limit thermostat & one thermo cut-off. Used on electric dryers from 1985-1995. Thermostat L250-80F High limit Fuse cuts off at 352F If your thermal fuse is broken your Whirlpool dryer will run but not...

If your dryer is running but not heating you may need to replace the thermal fuse. High Limit Temperature: 225°F / 107°C Thermal Fuse Temperature: 360°F / 182°C Compatible Models This Part Fits The Following Model...

Thermal Fuse - Used on both electric and gas models, L300F, Reference 36F14, Maytag p/n 53-1182 High Limit Thermostat - Electric Model, L248-80F, Reference 60T11, Maytag p/n 53-0771 High Limit Thermostat - Gas Model, L240-30F,...

Replacement thermostat for a Samsung dryer. Terminals: .25" Push-on Voltage: 125/250V Amperage: 25A L260-50F Compatible Models This Part Fits The Following Model Numbers: *Type your model number in the search bar below. If your model appears this part...

The thermal fuse blows to cut off power to the dryer if the dryer overheats. Terminals: .25" Push-on Voltage: 125 / 250V Amperage: 25A Temperature: 185°F / 85°C Fits Samsung®, Whirlpool®, and Kenmore® dryers

Dryer thermal fuse on heater housing (non-resettable) Terminals: .25" Push-on Voltage: 250V Amperage: 25A Temperature: 320°F / 160°C

10K Ohms @ 76°F //

Dimensions : 2.50" x 1.25" 284°F / 140°C, Flush Mount Fits LG® and Kenmore® Dryers

L257-88F (L125-31C) Contact Us Type your model number in the search bar below. If your model appears this part is compatible. Click here to see where to find the model number. DLE8377NM (ANBEEUS) - LG Dryer DLE3777E - LG Dryer DLE3733W (ABWEEUS) -...

Can handle loads up to 25 amps at 240VAC Open (°F): 240°F Close( °F): 200 °F Diff ( °F): 40 °F

The Therm-O-Disc® SET Series of 3/4" (19mm) bimetal disc temperature controls offers proven reliability in a versatile, cost-effective design. Can handle loads up to 25 amps at 240VAC Open °F: 250°F Close °F: 170...

Opens at 196°F 3/16" terminals Can handle loads up to 25 amps at 240VAC Compatible Models This Part Fits The Following Model Numbers: *Type your model number in the search bar below. If your model appears this part is compatible...

This part cycles the heating element on and off too maintain a consistent temperature. L155-25 Open (°F): 155°F Close( °F): 130°F Diff ( °F): 25°F Amperage (Full Load) @ 120VAC: 14A Amperage (Full Load) @ 240VAC: 10A Amperage...

Once your fuse has blown your dryer will run but not heat. Thermal Fuse Temp: 309°F / 154°C High Limit Temp: 250-80F / 121°C Compatible Models This Part Fits The Following Model Numbers: *Type your model number in the search...

Replacement thermal fuse, can be used on Samsung® models. 250 Volts Temperature: 320°F / 160°C Compatible Models This Part Fits The Following Model Numbers: *Type your model number in the search bar below. If your model appears this part...

This is a one time fuse, if it blows, it will not allow the heat to come back on. Thermal Fuse Temp: 352°F / 178°C High Limit Temp: 295°F / 146°C //

 High Limit Temp: 250°F / 121°C Thermal Fuse Temp: 309°F / 154°C Can handle loads up to 25 amps at 240VAC Thermostat L250-80 Degrees Fahrenheit High limit fuse 309 Degrees Fahrenheit Compatible Models This Part Fits The...
